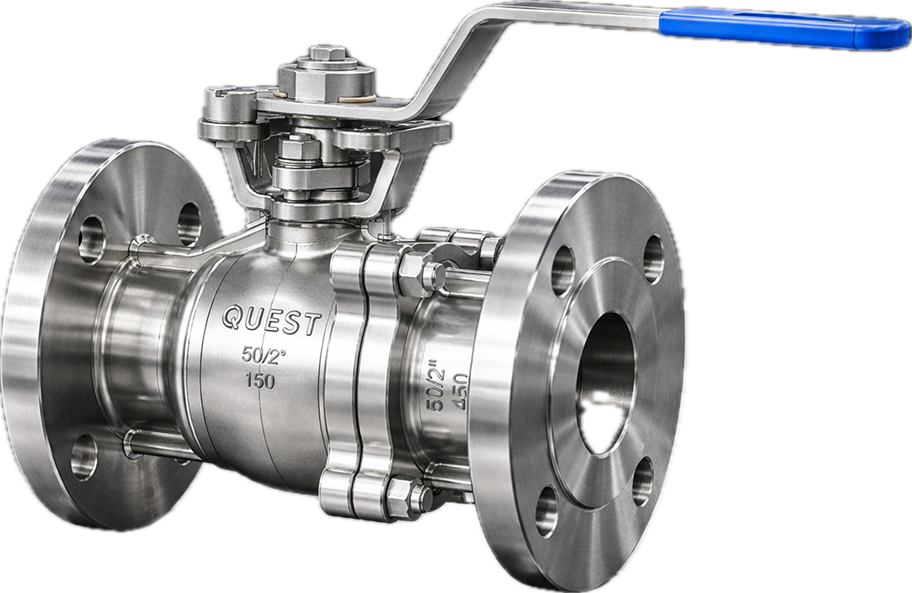

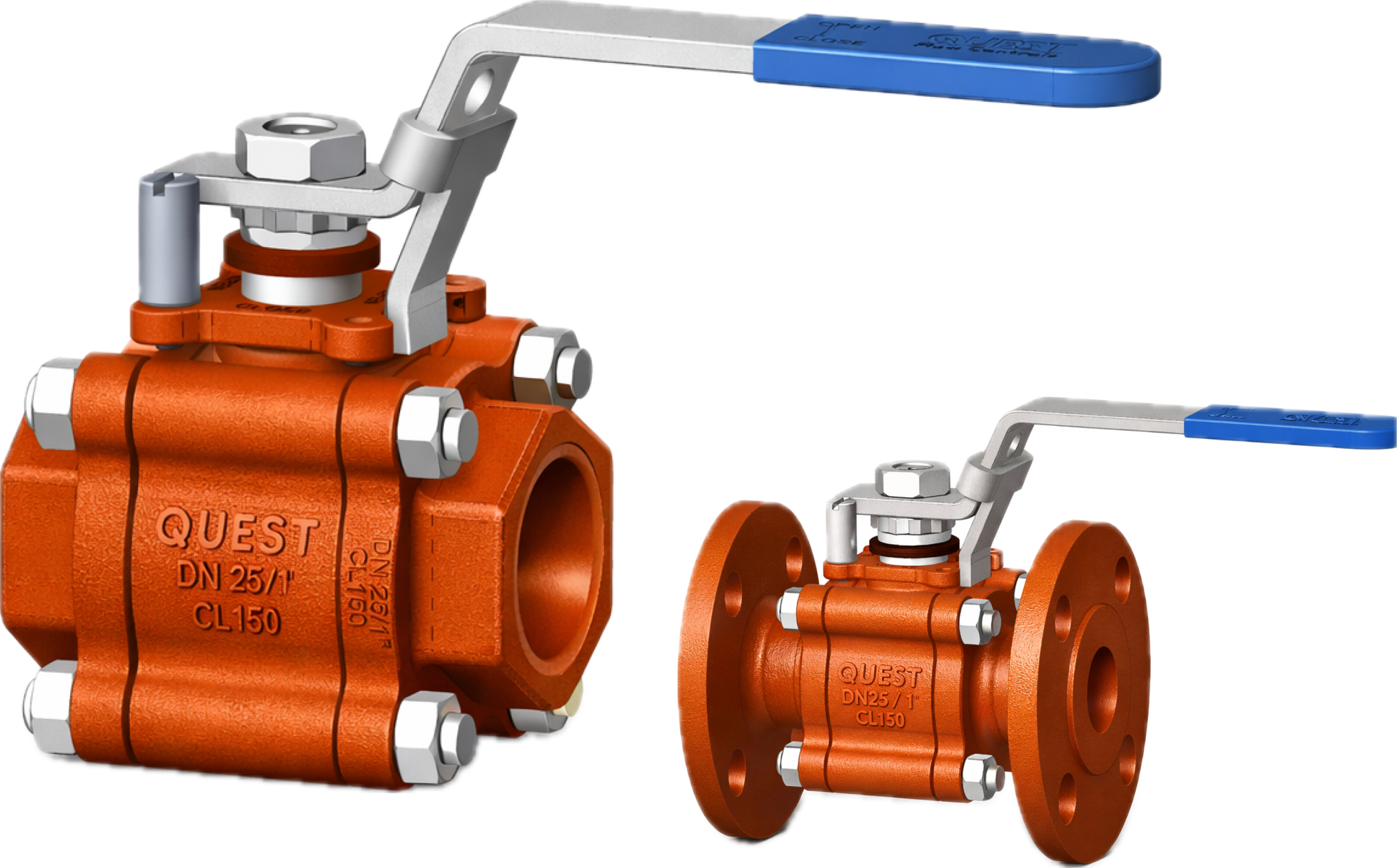

The Series F Floating Side Entry Ball Valves delivers superior quality and proven reliability. Manufactured in ISO 9001 and ISO 14001 certified facilities, these valves are designed in accordance with ASME B16.34, API 6D, API 608 and ISO 17292 with every valve fully pressure tested and serialized.
Key Features:

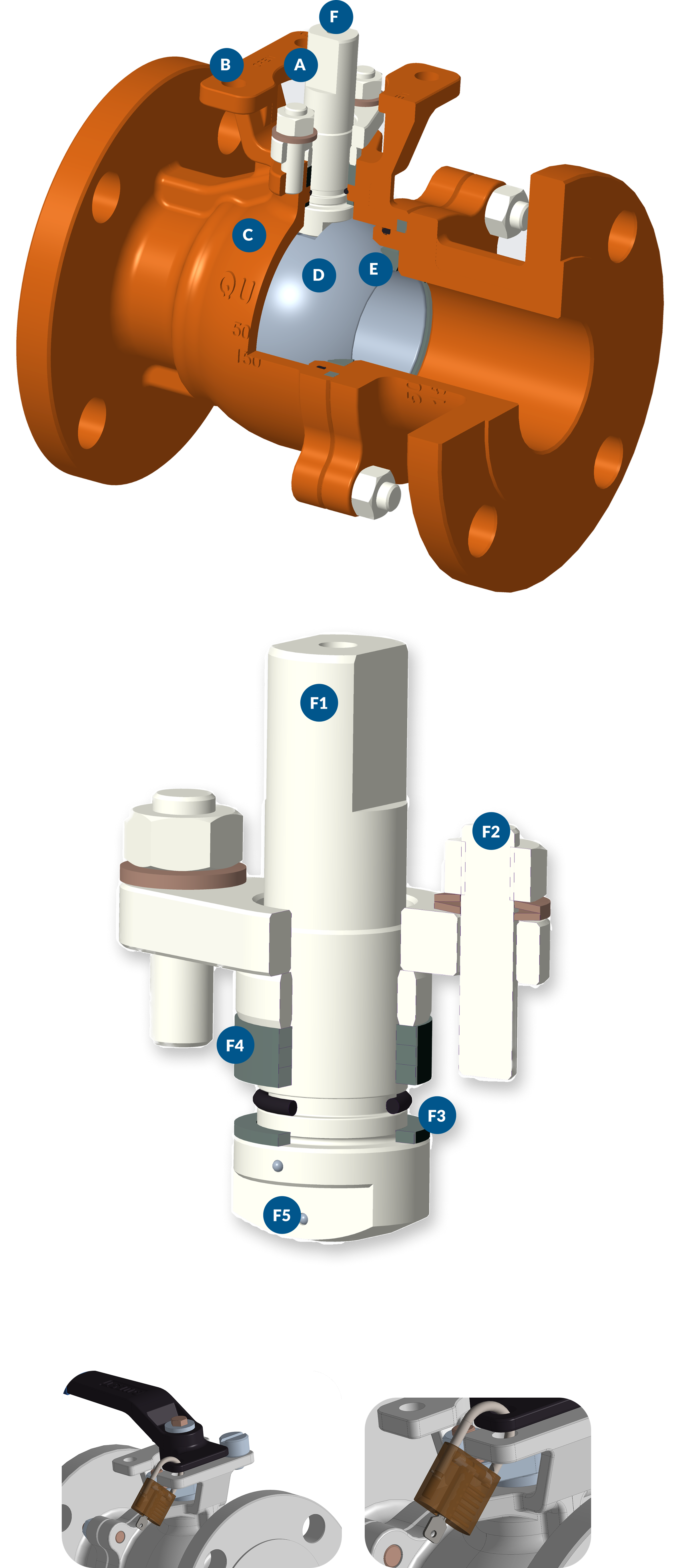

- Robust two piece cast body with ASME B16.5 raised face serrated flanges and corrosion resistant paint for extended outdoor service
- Precision machined floating ball with mirror finish ensures bubble tight shutoff, low torque and balanced cavity pressure for improved safety
- Contoured preloaded seats eliminate seat extrusion and ensure stable sealing at low pressure, vacuum and fully rated pressure
- SUPR proprietary seat material rated up to 72°F (300°C) with excellent chemical, thermal and mechanical resistance and lower permeability than standard PTFE
- Blowout proof stem with integral collar design and heavy duty construction in Double D or round keyed configuration
- Live loaded gland with Belleville springs ensures continuous compression, maintenance free sealing and excellent fugitive emission control
- Fire safe certified to API 607 and API 6FA with secondary metal to metal sealing for tight shutoff even after soft seat destruction
- Dual antistatic grounding system from stem to ball and stem to body prevents static charge buildup

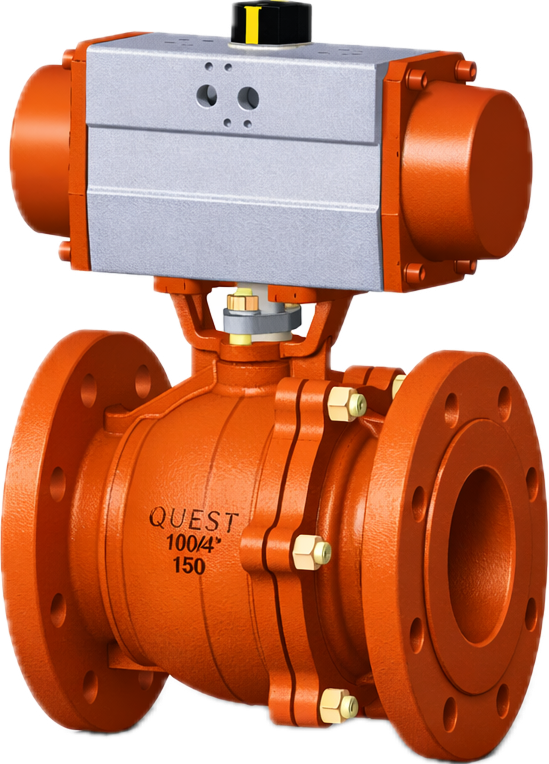

- ISO 5211 integral top flange enables direct actuator mounting with accessible gland bolt adjustment
- Safety trigger handle with padlock capability and integrated 90° travel stops prevent accidental or unauthorized operation
