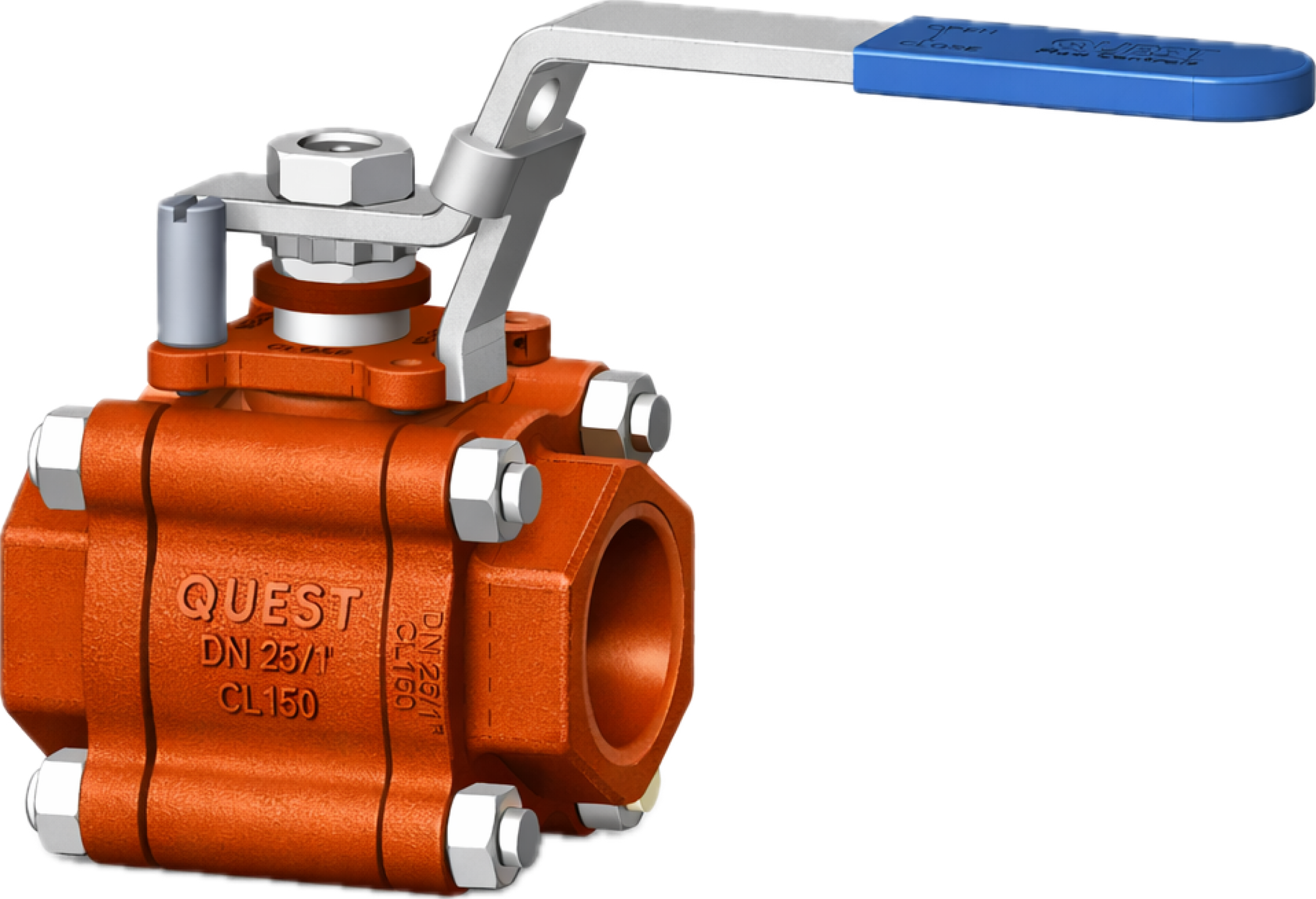

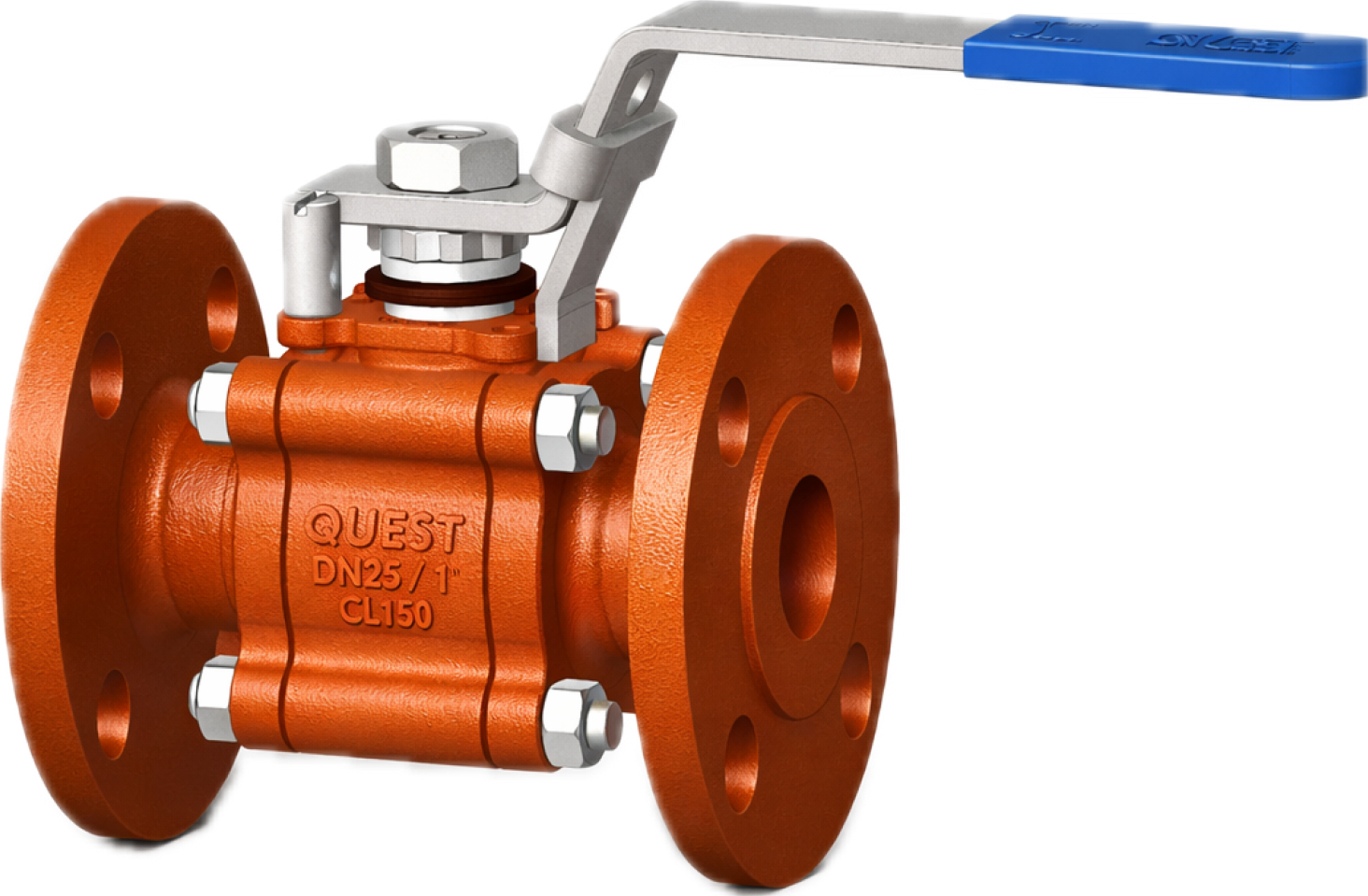

QUEST Flow Controls Three Piece Ball Valve (Series S) is a 3 PC soft seated valve designed and manufactured in compliance with ISO 17292, API 6D and ASME B16.34. Available in size range of ½" to 3" (DN15 to DN80), it supports pressure ratings of Class 150, 300, 400 and 800 and operates across a temperature range of -29°C to +200°C (-20°F to +392°F). Body materials include Carbon Steel, Stainless Steel, NAB and Gunmetal with end connection options of Screwed End, Socket Weld End, Butt Weld End and Flanged to suit varied installation requirements. The valve is available with actuation options making it suitable for both manual and automated operation across a wide range of industrial piping systems.
Not found
More products you might be interested in
QUEST Flow Controls delivers superior quality valves with proven reliability. Floating Side Entry Ball Valves are manufactured in ISO 9001 and ISO 14001 certified facilities with robust quality management systems and are designed in accordance with ASME B16.34, API 6D, API 608 and ISO 17292
